Wheel Block Assembly
Overhead crane wheels are the most important parts in traveling unit and also are the most vulnerable parts due to the strong impact and wear between wheel and rail. Flange wear, flange breakage and fatigue pitting are the frequently encountered problems. When the overhead crane wheels are broken, the repair and replacement are complex and very time-consuming. To ensure the high quality of the crane wheels assembly, every step in design.
End Carriage
Our corner-bearing end carriages are versatile, modular railmounted travel units of rigid box-section design. They can be connected direct to load bearing superstructures for cranes or crabs. Features of End Carriage:
1) Precise single or double-girder design with up to four travel wheels.
2) Can be configured for all load capacity ranges.
3) Optimized design of the entire crane system.
4) Convenient adjustment and maintenance.
5) Save time for handling during assembly.

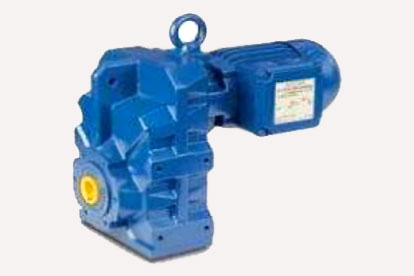

Gearbox For Long Travel
Compactness in design. The weight of complete geared box is substantially less as compared to conventional gear box.
- Housing made from fabrication steel casting ensures rigidity during working & free from internal & external defects.
- Elegant shape of casting causes better aesthetic approach.
- All gears are manufactured from alloy/ carbon steel duly heat treated with specified hardness.
- The gears are ground to ensure maximum tooth contact which decreases noise level.
- Gears used are suitable for variable frequency application & also used as directly without VFD application.
- Proper quantity of synthetic graded oil has been used to ensure splash lubrication during operation of gear box.
- Installation & mounting of gear box is easy based on hollow shaft & torque arm method.
- Various types of reduction ratios are available for different horse powers for different class of duty.
- Gear box are suitable up to 20T Single Girder Cranes for Long Travel & up to 40T Double Girder Crane for Cross Travel & Long Travel application.

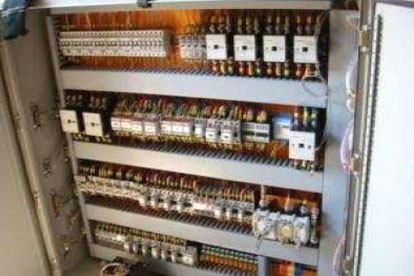

Control Panel For Crane
The control panel of your crane is the brains of the operation. Our selection of intelligent, cutting-edge control panels allow your crane to adopt to and master any task quickly. Find the best control panels and conductors to operate your crane.
